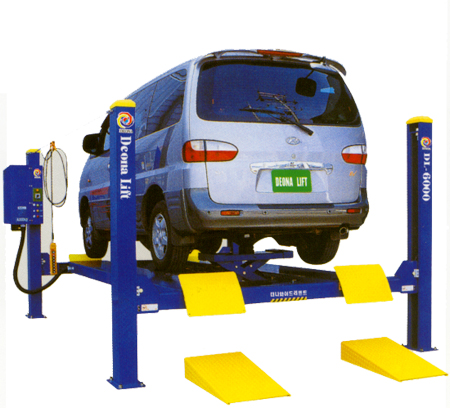

4-POST LIFT USE FOR TRUCKS AND VANS/6TON
* Installation a work scaffold for engine
* Individual control swich on each jacking bridge
* Two wire rope(12￠)use for satety
* Electric actuated safety locking
SPECIFICATION
|
Model |
DL-6000J |

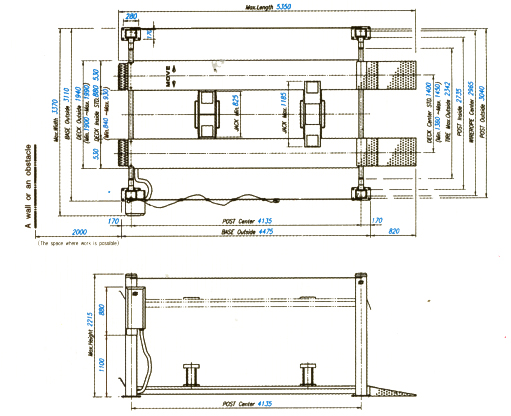

Dimension(mm) |
MAIN 3,370mm |
|
Capacity |
MAIN 6,000kg |
JACK 880~1,550mm |
|
JACK 3,000kg |
Lifting Time |
MAIN 60 sec |
|
Max. Lifting Height |
MAIN 1,750mm |
JACK 10 sec |
|
JACK 455mm |
Standard Motor |
3P 2.5HP x 4P x 220V/380V x 60Hz |
|
Overall Height |
2,215mm |
Net Weight |
4,440kg |
